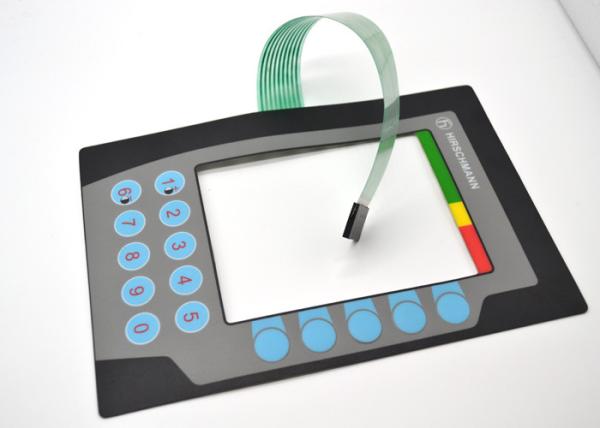

Push Button Membrane Switch Application
Push Button Membrane Switch because of its fantastic Electrical Properties, Mechanical
Properties and Environmental Properties, it is widely used in Smart
Home Appliances, Office Equipment, Medical Equipment, Automobile
and Industrial Equipment.
| Other Features |
| Artwork/Drawings Format | CorelDraw, Adobe Illustrator AI, AutoCAD |
| Tail/Pin/Circuit Layout | Based on customers detailed requests |
| Antistatic Shielding | Can be added For Protection |
| Connector | Female/Male Connectors or ZIF Connector |
| Rear Adhesive: | 3M467, 3M468, 3M9080 etc… |
| Cables | Extension of Circuit and Connect with your Device |
| Printing Method | Silk Screen Printing/Digital printing |
| Windows/Lens Coating | Can be added |
| Certificate | ISO9001 RoHS CE SGS |
1. Electrical Properties: |
1, operating voltage: | ≤ 50VDC |
2, working current: | ≤ 100mA |
3, Contact resistance: | 0.5 ~ 5Ω |
4, Insulation resistance | ≥ 100MΩ (100VDC) |
5, substrate voltage: | 2kDVC |
6, spring time: | ≤ 6ms |
7, loop resistance: | 60Ω |
8, insulation ink voltage: | 100VDC |
2. Mechanical Properties : |
1, reliability, service life: | > 1 million times |
2, closed displacement: | 0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm |
3, health standard for power: | 300g Power |
4, Silver migration: | In 55 ℃, humidity 90%, 56 hours later, the second-line between the
10MΩ/50VDC |
5, Silver online | no oxidation, no impurities |
6, Silver width | ≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the
line gap of <1 / 4width |
7, pin spacing standard | 2.54mm |
8, lead anti-curvature, with d | 10mm steel rod line pressure roller 80 constantly. |
3. environmental performance : |
1, operating temperature: | -40 ℃ ~ +80 ℃ |
2, storage temperature: | -40 ℃ ~ +85 ℃ temperature of 95% ± 5% |
3, atmospheric pressure: | 86 ~ 106kDa |
